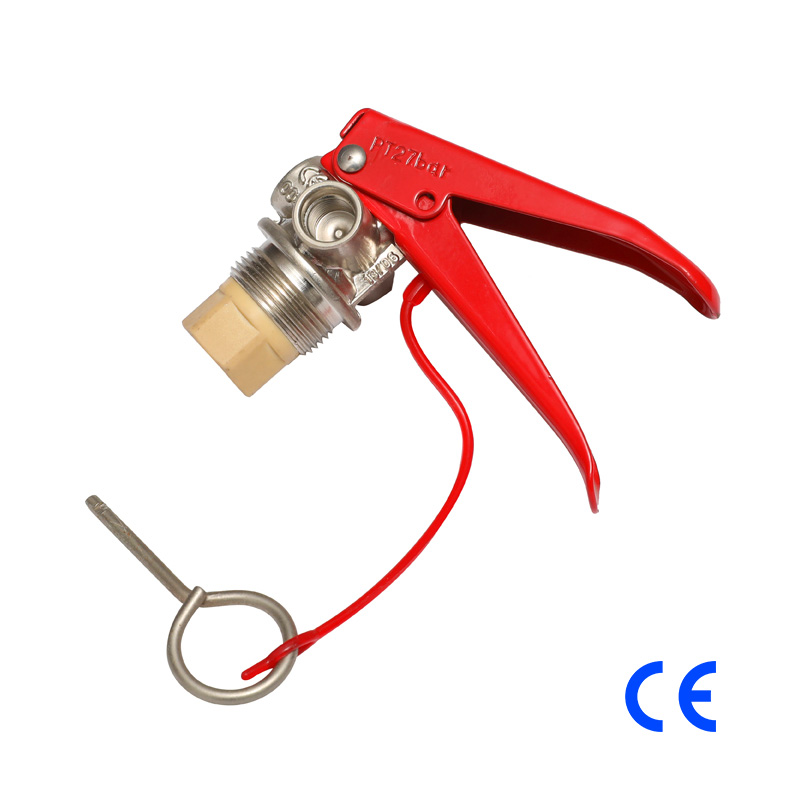

Inlet Thread: M30x1.5
Outlet Thread: G1/8x28
Gauge Connection Thread: M10x1x12.5
Dip Tube Thread: M16x1.5
Pressure Mpa: 2.3-2.8
Check Valve: Valve core
1. Structural design and core advantages
The core advantages of fire quick connectors come from their precise structural design and scientific application of materials. Its double seal ring redundant design adopts a double notch structure of the female connector and is equipped with a high-temperature resistant silicone seal ring to build a double sealing barrier. When the water pressure fluctuates, the outer seal ring is responsible for dynamic pressure buffering, while the inner seal ring provides static sealing protection, effectively reducing the risk of seal failure. Compared with the traditional single seal structure, its leakage rate is also significantly reduced.
2. Actual combat effectiveness and key data
In fire rescue scenarios, the device shows significant performance advantages. Its magnetic pre-fixation and guide locking mechanism ensures precise alignment in a short time by setting neodymium magnets with opposite polarities at the end of the connector. Fire quick connectors have raised emergency rescue efficiency to a new level with the triple innovation of precision mechanical design, breakthroughs in material science, and integration of intelligent IoT. Its value is not only reflected in the technical parameters, but also in the precious 3 minutes it has won for each life-and-death rescue - this is the core component of the golden time for fire fighting. With the continuous development of smart firefighting technology, this type of equipment is gradually evolving from auxiliary tools to the nerve endings of emergency rescue systems.
3. Economic benefits and environmental value
Reduce operation and maintenance costs, reduce water waste caused by leakage, and save 30% of water in a single firefighting operation. Reduce labor costs by 60% by shortening equipment switching time.
